Vorschau: ALLNET Apollo On-Prem Hardware Controller / Management & Provision von max. 100 AP´s und Switche Apo

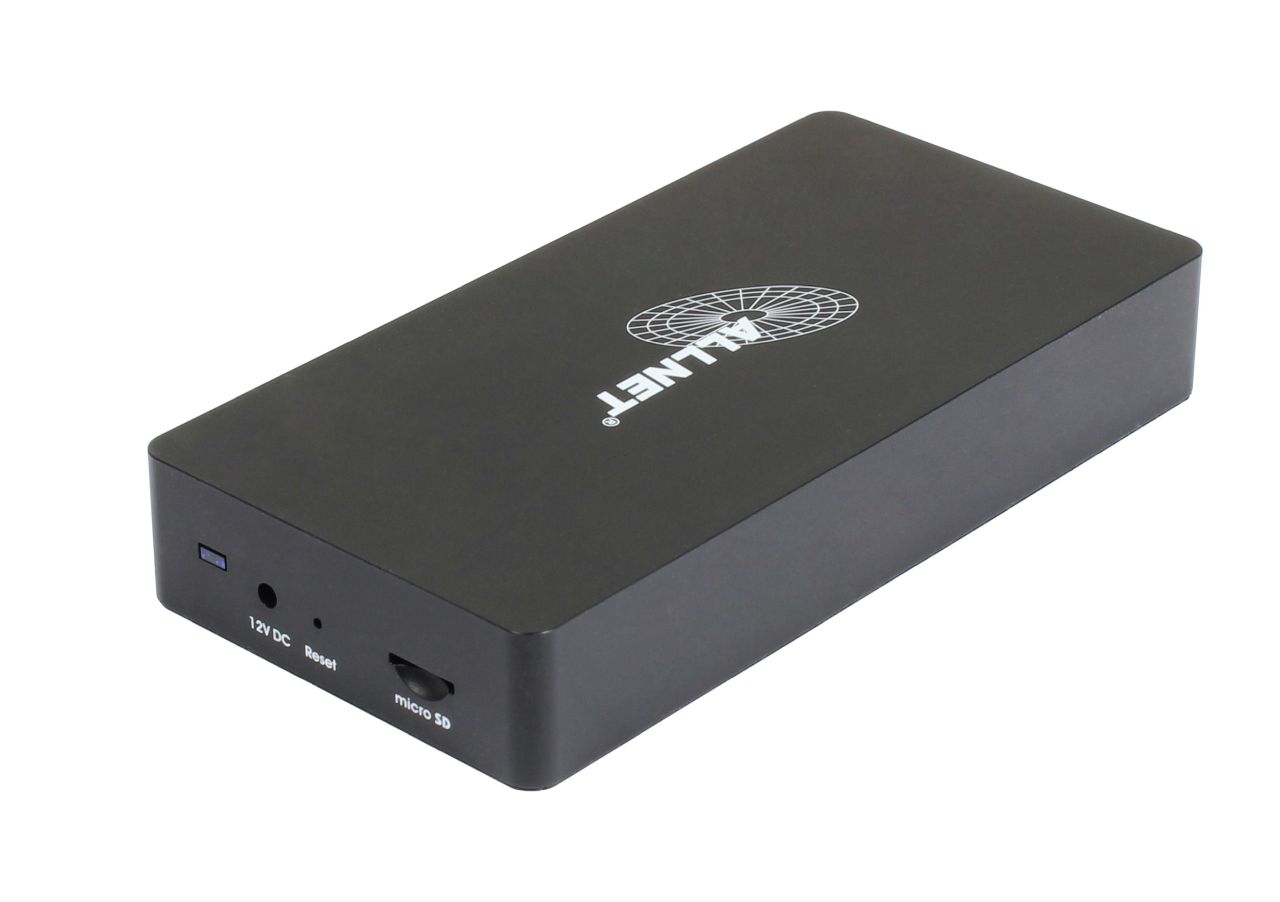

ALLNET Apollo On-Prem Hardware Controller / Management & Provision von max. 100 AP´s und Switche Apo

241,33 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage

Artikel-Nr.: 211733
Hersteller: ALLNET
Hersteller Artikel-Nr.: ALL-AC100
EAN Nummer: 4038816126634
Gelistet seit: 09.08.2022

On-Premises Management Network Controller Entdecken Sie die Zukunft der... mehr

Menü schließen

Produktinformationen "ALLNET Apollo On-Prem Hardware Controller / Management & Provision von max. 100 AP´s und Switche Apo"

On-Premises Management Network Controller

Entdecken Sie die Zukunft der Netzwerkverwaltung für kleine Unternehmen mit unserem On-Premises Management Network Controller.

Wir verstehen, dass Zeit und Ressourcen kostbar sind, und deshalb haben wir die Installation und Verwaltung von Access Points und Switches revolutioniert. Keine komplizierten Einrichtungsprozesse mehr - einfach einstecken und sofort loslegen. Unser intuitiver Benutzeroberfläche ermöglicht es Ihnen, Ihre Geräte mit nur wenigen Klicks zu registrieren, zu konfigurieren und nahtlos in Ihr Netzwerk zu integrieren.

Unser On-Premises Management Network Controller ist die Lösung, die Ihre Arbeit effizienter und produktiver gestaltet. Vereinfachen Sie Ihre Netzwerkverwaltung und konzentrieren Sie sich auf das, was wirklich wichtig ist - das Wachstum Ihres Unternehmens. Erleben Sie die Zukunft der Netzwerkverwaltung, heute.

Highlights:

Managed Accespoints und & Switche
Eine einzige Schnittstelle zur Steuerung aller Geräte
Organisieren Sie Ihr Netzwerk nach Standorten oder Stockwerken
Geräte sind steckbar und einsatzbereit, ohne Aufwand bei der Einrichtung
Übersichtliches Dashboard zur Netzwerkstatusanzeige
Benachrichtigungen/Alarme bei auftretenden Problemen
Diagnosetools zur Identifizierung und Behebung von Problemen
Gerätekonfiguration als Gruppe oder einzeln
Wi-Fi-Clientliste, Verkehrs- und Anwendungsstatistiken
Einfache Einrichtung von Captive Portals und Gästenetzwerken
Geplante automatische Firmware-Updates der Geräte
Topologieübersicht der installierten Geräte

Physical Interfaces:

Software Features

ALL-AC100 Controller

Dashboard

Manage Access Point / Switch

Status
Channel Utilization
Online AP
Online Switch
AP Usage
Switch Usage
2.4Ghz or 5Ghz Client Ration
Number of Online Switch
Number of Offline Switch
Number of Online AP
Number of Offline Switch
Number of client device in 2.4 GHz radio
Number of client device in 5 GHz radio

Throughput
Client
Traffic: Total, Download, Upload

Traffic
Top Access Point
Top Clients
Top SSIDs
Top Applications

Topology

Show Label Redundant

Clients

Throughput
Client Name
Traffic : Total, Download, Upload
Filter : Favorite, Time, SSID, OS, Client, Last Associate AP, IP Display, Client Name, MAC, Access, Last Seen, Last Asso. AP, SSID, IP, OS, Vendor, RSSI, Rate, Band
Access Control
Export

Configure

SSID

Display
SSID
Radio
Enabled
Hidden
Security
Captive Portal
Splash Page
Bandwidth Limit
Scheduling
Application Analysis

Add SSID

Wireless
Name
Enabled
Hide
Radio
Security Type: WPA2-PSK/WPA3-PSK/WPA2-Enterprise/WPA3-Enterprise
802.11r
802.11w: All clients/Allow 11w-clients only
Client IP Mode: NAT Mode/Bridge Mode
Default VLAN
Dynamic Client VLAN Pooling
Enable Application Analysis

Advanced Setting
L2 Isolation
Band Steering: Type, RSSI Threshold, Client Percent
BCMC Suppression
Bandwidth Limit
Per Client: Download/Upload
Per SSID: Download/Upload
Recommendation: Application, Bandwidth
Captive Portal
Authentication Type: Click-through, EnGenius Authentication, Custom Radius, Voucher Service
Redirect URL:
• Redirect to the URL that the user was trying to visit
• Redirect users to a specified URL after login
Advanced Setting: Session Timeout/Idle Timeout/Walled Garden/HTTPS Login
Splash Page
Splash Page Type: External Splash Page URL/Local Splash Page
Schedule
Scheduling
Quick Template
Access Control
Block List
VIP List

Radio Setting

Indoor & Outdoor
Radio
Channel
Channel Width
Target Tx Power
Min. Bitrate
Client Limit
Discard 802.11a/b/g
Disable 11as
Background Scanning
Client Balancing
Mesh

Controller User

Radius Users
Display
Name
Email
Authorized SSID
Create Date
Status
Add User
Email
Name
Password
SSID Authorization

Authorized SSIDs
Display
Name
Email
Authorized by
Authorized Date
De-authorize

Firmware Upgrade

AP
Firmware Lists: Model, Firmware Version, Upload Date, Actions
Maintenance Window
Upload
Upgrade Now

Switch
Firmware Lists: Model, Firmware Version, Upload Date, Actions
Maintenance Window
Upload
Upgrade Now

Alert Setting

AP
Basic: AP go offline for event with severity
Professional: Configuration changed within network

Switch
Basic: AP go offline for event with severity
Professional:
• Configuration changed within network
• Switch Port link status change
• Switch STP port status change
• Switch LBD status change

VLAN Settings

Display
VLAN ID
Name
Voice VLAN: Protocol, Bridge Priority
LLDP

Voice VLAN
Voice VLAN ID
QoS Priority
Mode
OUIs: OUI Address, Description
Quality of Service
Trust Mode
Scheduling Method
Queue Mapping: CoS, DSCP
IGMP Snooping: Version, VLANs
Jumbo Frames: MTU Size

General Settings

Network
Country, Time Zone
Local Credential: Username, Password
SNMP: SNMP State, Community

AP
LED Light
Syslog Server: Status, Log Server Address, Log Server Port
Message for Blocked Client

Advanced Settings
Presence Reporting: Server Location, Key, Interval
Traffic Log
Multicast to Unicat

Switch
LED Light
Syslog Server: Status, Log Server Address, Log Server Port

Access Control

Blocked List
VIP List
Analyze

Event Logs

Device Event
Time
Device
Event Type
Description / Detail

System Event
Time
Device
Event Type
Description / Detail

Config Log
Time
Device
Event Type
Description / Detail

Team Members

Display
Name
Email
System Permissions
Network Managed
Status
Last Login
Action

Invite New Member
User Email
Networks
Permission

Organization

Inventory

Devices
Network
Model
Serial Number
MAC Address
Registered Time
Registered By

Register Device
Pending Approval: Serial Number, Model, MAC
Manually: Serial Number

System Information

Usage
CPU
Memory
Disk
System Up Time
Software Version
Check for Update

Email Alerts

Mail Server
SMTP Server
SMTP Port
Authentication
User Name
Password
From Email Address
To Email Address
Subject

Backup & Restore

Configuration Backup
Name
Network
Time
Creator
Action

System Backup
Backup System Configuration
Restore System Configuration

Account Profile

Edit Profile
Password
Reset
Reboot
Two-Factor
Authentication
Notification Settings
Logout

Access Point

Display

Name
MAC address
Model Name
WAP IP
LAN IP
Client (2.4G/5G)
FW Version
Network
Uptime
Last Update
Mesh Mode
Action: Detail/Reboot
Throughput
Channel Utilization
Radio: 2.4GHz/5GHz, Unlock. Enabled, Channel, Target TX Power, Channel Width
WLAN: SSID, Status
Mesh: Don’t allow this AP to join the Mesh network
Location

Details

Device Information

Model Name
Firmware
Serial Number
MAC Address
Configuration
IP Address
Subnet Mask
Gateway
Topology
LED Light
LED Blinking
2.4 GHz Channel & TX Power
5 GHz Channel & TX Power

Summary SSID Information

Unlock
SSID
Enabled
Hidden
Radio
Security
Captive Portal
Clients in 5 mins (2.4GHz/5GHz)

Throughput

Client
Traffic: Total, Download, Upload

Radio

2.4GHz and 5GHz
Unlock
Enabled
Channel
Target Tx Power
Min. Bitrate
Client Limit
Channel Width
Discard 11a/b/g
Mesh:Don’t allow this AP to join the Mesh network

IP Addressing

Static
DHCP
IPv4 Address
Subnet Mask
Gateway
DNS Server 1
DNS Server 2
Management VLAN

Logs

ADD Filter

Time
Event Type
Description

Clients

Filter

Favorite
Time
SSID
OS
Client
IP

List

Client Name
MAC
Access
Last Seen
SSID
IP
OS
Vendor
RSSI
Rate
Band
Download

Access Control

VIP
Block
Normal

Export

CSV file

Switch

Display

Name
MAC address
Model Name
WAP IP
LAN IP
Ports (Active/Total)
FW Version
Network
Uptime
Last Update
Action: Detail/Reboot
Port View: Speed, Disconnected, Disabled, PoE, Uplink, Blocked
VLAN: Name, Tagged, Untagged
Status: PoE, STP, IGMP Snooping, LLDP, QoS, Voice VLAN

Detail

Device Information

Model Name
Firmware
Serial Number
MAC Address
Configuration
IP Address
Subnet Mask
Gateway
Topology
LED Light
LED Blinking
Voice VLAN
Jumbo Frame
IGMP Snooping
STP
LLDP
QoS

Summary Ports

Speed
Dsconnect
Disabled
PoE
Uplink
Blocked

System Config.

Spanning Tree
LLDP
Voice VLAN
QoS
IGMP Snooping
Jumbo Frame
Local GUI
Debug Log Upload

Ports

Port
Label
Enabled
Voice VLAN
Speed/Duplex
PoE
PVID
Untagged VLAN
Tagged VLAN
Isolation
Rate Limit (Tx/Rx)
QoS

Configure

Enable
Label
Speed/Duplex
VLAN: • PVID • Enabled
Voice VLAN Isolation
Rate Limit

VLAN

VLAN ID
Name
Tagged
Untagged

Mirror

Session ID
Session State
Destination Port
Egress
Ingress

PoE Schedule

PoE Scheduling per port

Link Aggregation

Trunk:
ID
Aggregation Type
Active Port
Member Ports

Technical Details:

	ALL-AC100
Main Chipset	Qualcomm ARM A53, 1GHz Dual-Core
Description	On-Premises Network Controller
SPI/NAND Flash Memory	eMMC 8GB
RAM	1GB DDR4

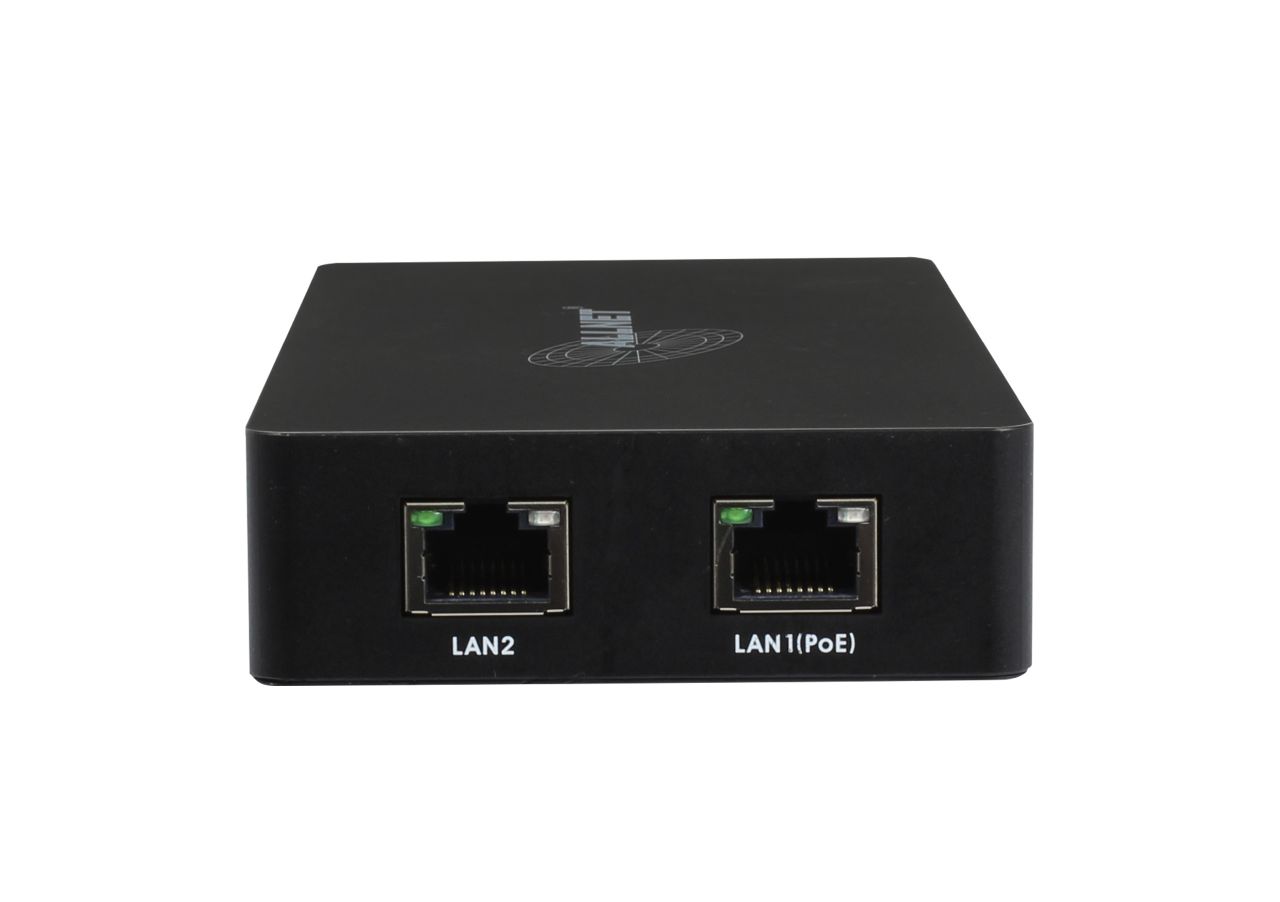

Interface	2x 1GbE LAN LAN1 PoE IN
Dimensions (W x D x H)	153x77x25mm
Operating Temperature	0°C to 40°C
Certificaton (Generic)	FCC CE
