- Artikel-Nr.: 131835
- Hersteller: ALLNET
- Hersteller Artikel-Nr.: NB181608-02
- EAN Nummer: 4038816131836
- Gelistet seit: 19.05.2016

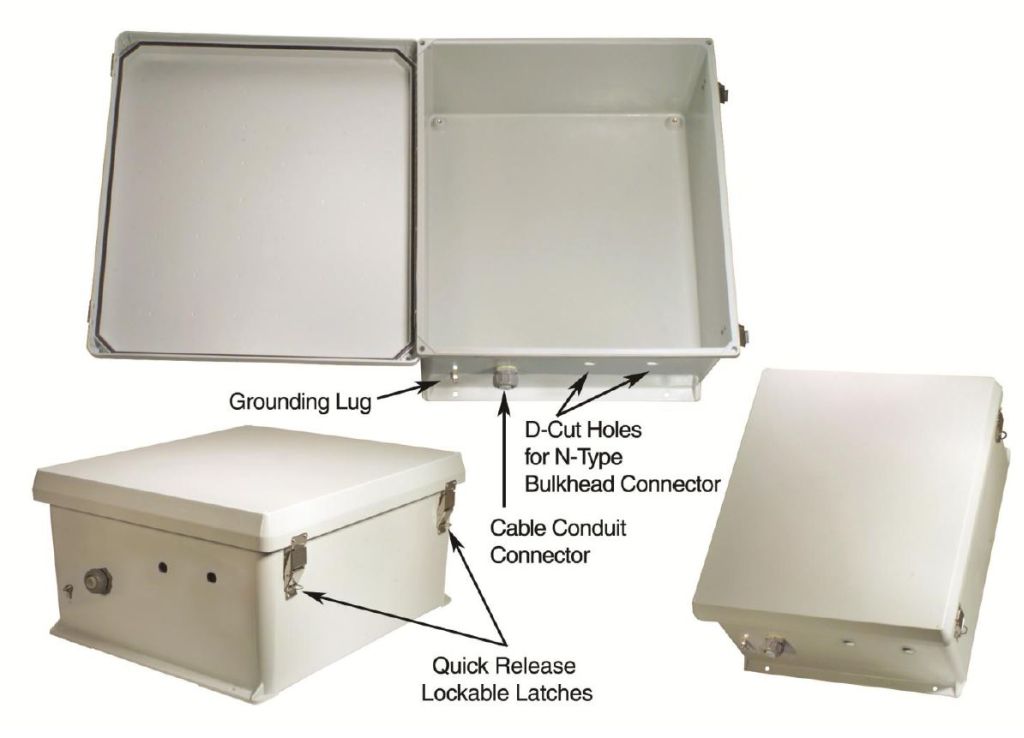

The box is a rugged 18" x 16" x 8" weatherproof enclosure that is ideal for both indoor and outdoor applications. Constructed from molded fiberglass, it is well suited for high temperature or corrosive environments. The mounting flange allows it to be wall mounted as well as on a flat surface. The box can also be pole mounted with the optional pole mounting hardware kit. The fully gasketed lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The enclosure material is UV stabilized and comes in machine tool gray.
L-com's HyperLink brand non-powered NEMA rated enclosures are perfect for housing both wired and wireless communications equipment. These robust, weatherproof enclosures feature sealed, gasketed raised lids and quick release lockable latches. This Enclosure is 18" x 16" x 8" and has entry holes for Coax and Power Cable pre-drilled. The Enclosure comes without a Mounting Plate.
Features:
|
Applications:
|
Specifications:
| Enclosure Material | Fiberglass Reinforced Polyester |
| Enclosure Color | Machine Tool Gray |
| Mounting Plate Material | N/A |
| Weight | 19.3 lbs (8.8 kg) |

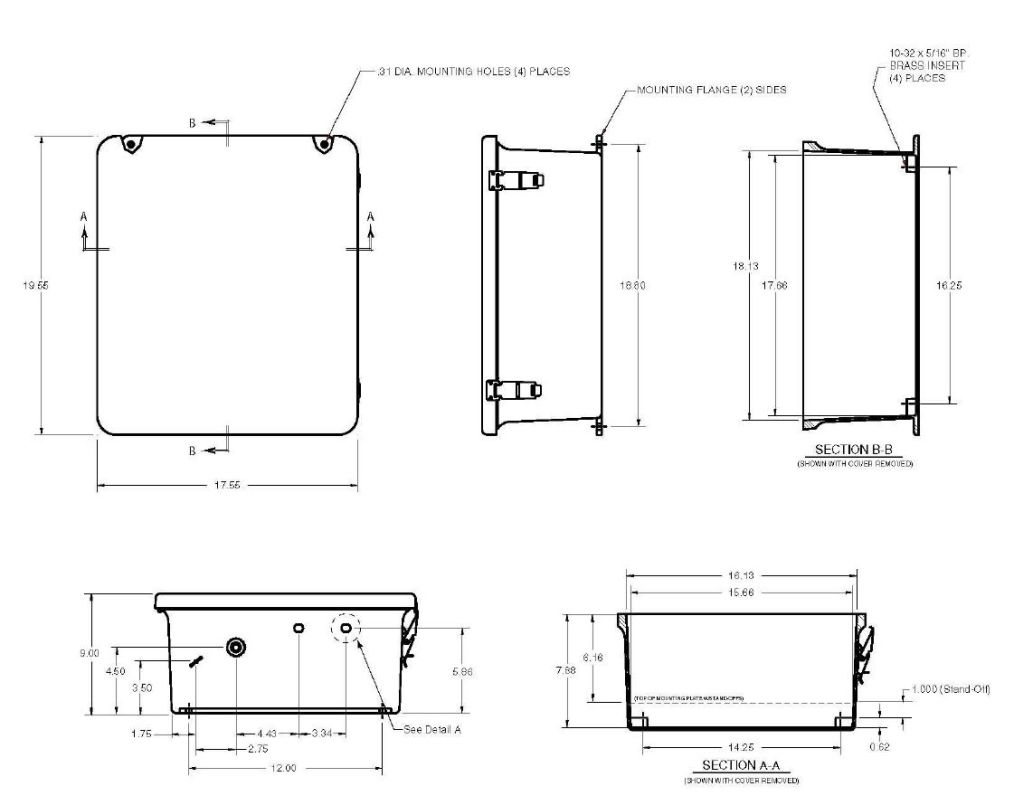

| Outside Dimensions (max) | 19.5 x 17.5 x 9 inches (49.5 x 44.4 x 22.8 cm) |
| Inside Dimensions | 17.7 x 15.7 x 8.5 inches (44.9 x 39.9 x 21.6 cm) |
| Flame Rating | UL 94-5V |
| Cable Feed | 1/2" Cable Conduit Connector |
| RoHS Compliant | Yes |
| Ratings* | NEMA Type 4, 4X / IP66 |
