- Artikel-Nr.: 210284
- Hersteller: ALLNET
- Hersteller Artikel-Nr.: ALL-CAM2498v2-LEP
- EAN Nummer: 4038816121752
- Gelistet seit: 19.04.2022

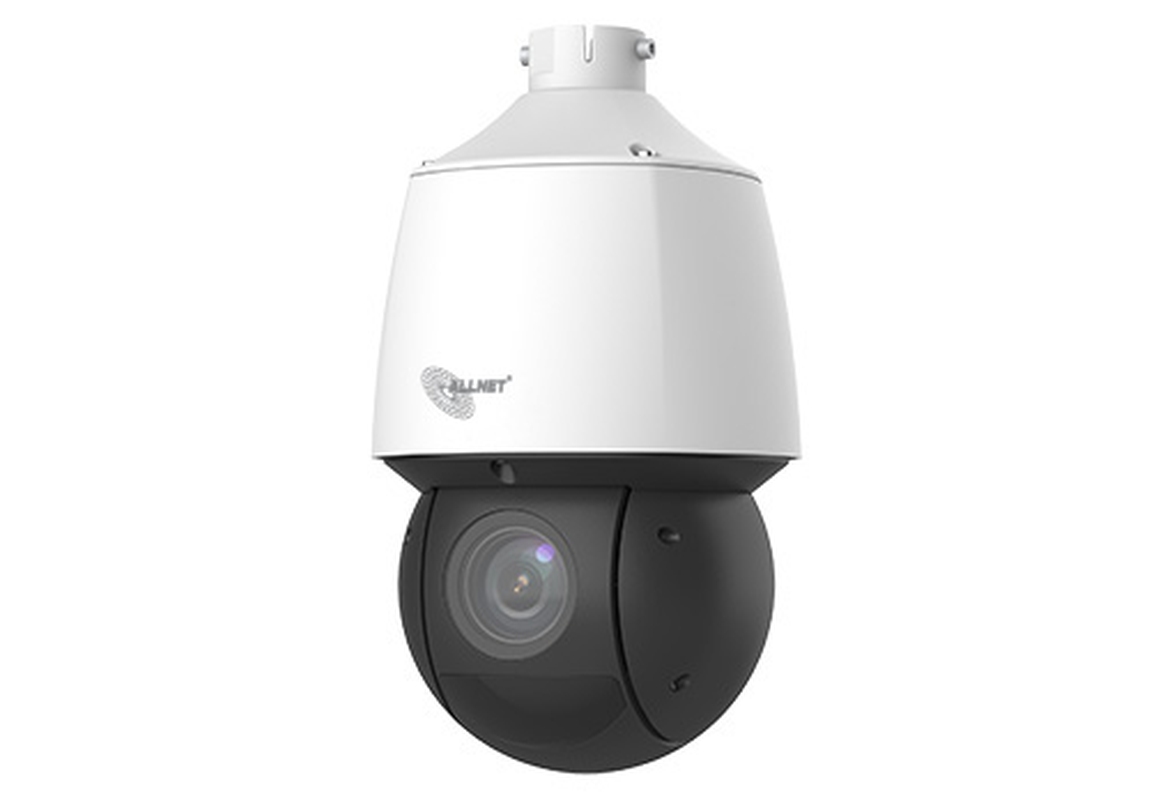

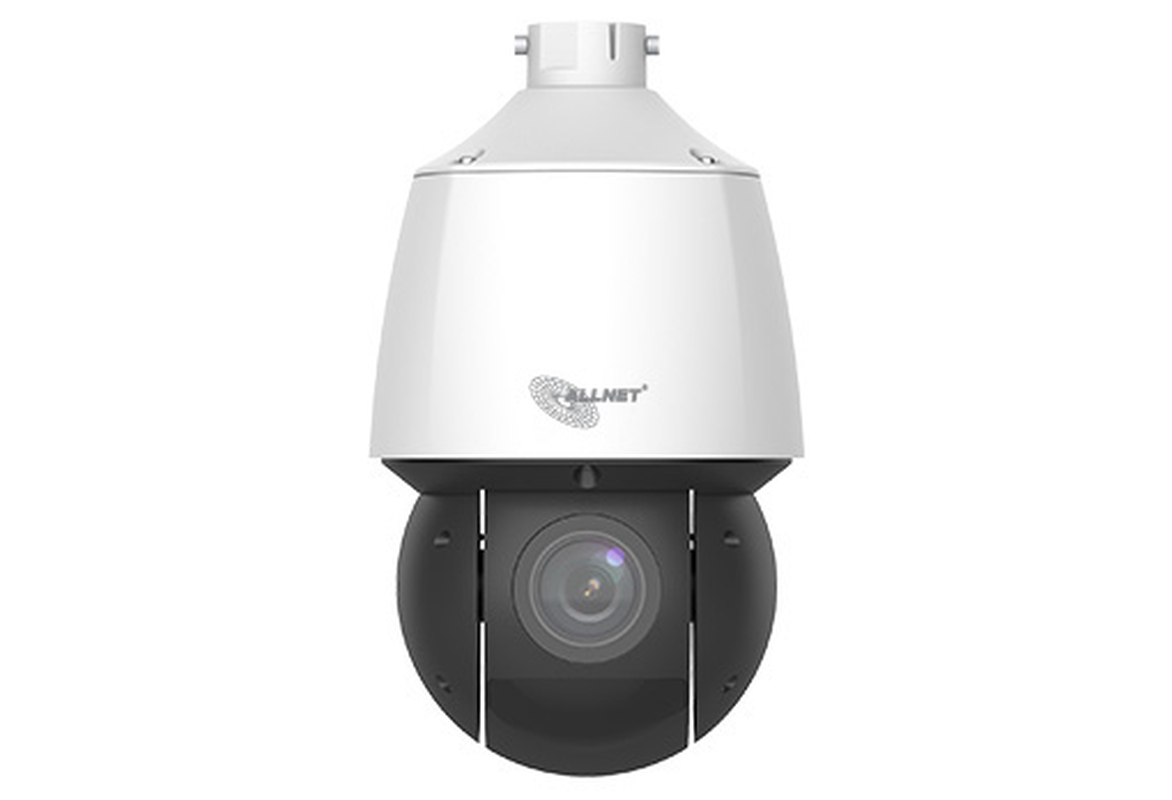

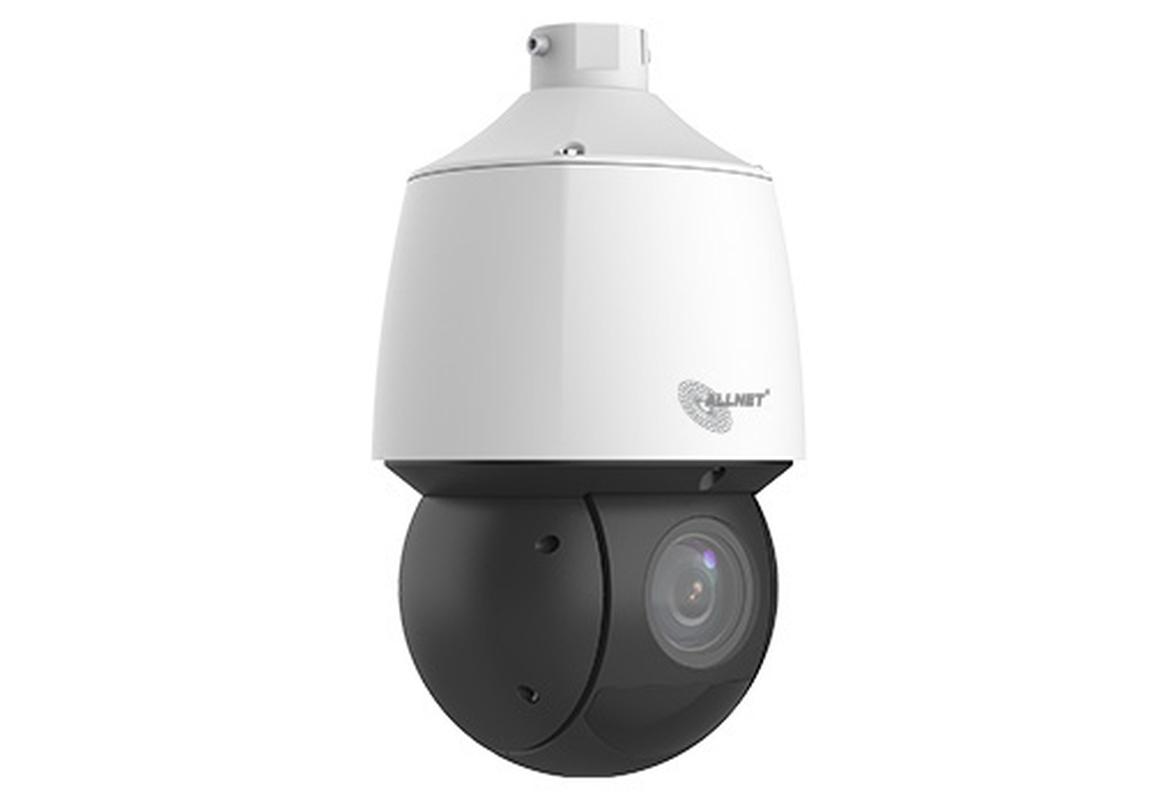

ALLNET IP Kamera PTZ / Outdoor / 4MP / IR / IP67 / IK10 / 25x opt. Zoom / Motion-Tracking /... mehr
Produktinformationen "ALLNET IP Kamera PTZ / Outdoor / 4MP / IR / IP67 / IK10 / 25x opt. Zoom / Motion-Tracking / "ALL-CAM"
ALLNET IP Kamera PTZ / Outdoor / 4MP / IR / IP67 / IK10 / 25x opt. Zoom / Motion-Tracking / "ALL-CAM2498v2-LEP"
4MP 25x Lighthunter Network PTZ Dome Camera
Highlights:
- Hohe Bildqualität mit 4MP, 1/2.8'' CMOS Sensor
- 2688*1520@30fps im Hauptstream
- Ultra 265, H.265, H.264, MJPEG
- Dreifach-Streams
- 25facher optischer Zoom
- Lighthunter-Technologie sorgt für ultrahohe Bildqualität bei geringer Beleuchtung
- Smart IR, bis zu 100m (328ft) IR-Abstand
- DC 12V±25% oder PoE+ (IEEE 802.3at)
- Alarm 2 Eingänge und 1 Ausgang, Audio 1 Eingang und 1 Ausgang
- IP67 Schutz gegen Eindringen
- IK10 vandalismus geschützt
Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx
Technical Details:
ALL-CAM2498v2-LEP | |||||
Camera | |||||
Sensor | 1/2.8", 4.0 megapixel, progressive scan, CMOS | ||||
Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
WDR | 120dB | ||||
S/N | >56dB | ||||
Lens | |||||
Lens type | 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens | ||||
Digital Zoom | 16 | ||||
Optical Zoom | 25 | ||||
Iris | Auto; F1.5 ~ F3.8 | ||||
Angle of View (H) | 52.20°~2.74° | ||||
Angle of View (V) | 30.81°~1.54° | ||||
Angle of View (O) | 64.20°~3.23° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
4.8 | 119.3(391.2ft) | 47.7(156.5ft) | 23.9(78.2ft) | 11.9(39.1ft) | |
120 | 2475.0(8120.1ft) | 990.0(3248.0ft) | 495.0(1624.0ft) | 247.5(812.0ft) | |
Illuminator | |||||
IR Range | Up to 100m (328 ft) IR range | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
U-code | Support | ||||
ROI | Support | ||||
Video Stream | Triple streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | 24 areas, up to 4 areas per scene | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital Noise Reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
HLC | Support | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Events | |||||
Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
Auto Tracking | Support | ||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.711U,G.711A | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way Audio | Support | ||||
Suppression | Support | ||||
Sampling Rate | 8 kHz | ||||
Storage | |||||
Edge Storage | Micro SD, up to 256 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | EZStation EZLive EZView | ||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
Pan & Tilt | |||||
Pan Range | 360° (endless) | ||||
Pan Speed | 0.1°/s ~ 200°/s | ||||
Preset speed: 240°/s | |||||
Tilt Range | –15° ~ 90° (auto reverse) | ||||
Tilt Speed | 0.1°/s ~ 120°/s | ||||
Preset speed: 200°/s | |||||
Number of Presets | 1024 | ||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||
Patrol Stay Time | 15s~1800s | ||||
Preset Image Freeze | Support | ||||
Home Position | Support | ||||
Interface | |||||
Audio I/O | 1/1 | ||||
Alarm I/O | 2/1 | ||||
Serial Port | 1 RS485 | ||||
Built-in Mic | N/A | ||||
Built-in Speaker | N/A | ||||
WIFI | N/A | ||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
Video Output | 1 BNC | ||||
Certification | |||||
EMC | FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | ||||
Safety | IEC 62368-1 EN 62368-1 UL 60950-1 | ||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||||
General | |||||
Power | DC12V(±25%,3A), PoE+(IEEE 802.3at) | ||||
Power consumption: MAX 21W | |||||
Power Interface | Ø 5.5mm coaxial power plug | ||||
Dimensions (Ø x H) | Ø166 x 295mm (Ø6.5” x 11.6”) | ||||
Weight | 3.05kg(6.72lb) | ||||
Working Environment | -40°C~70°C(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40°C~70°C(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) | ||||
Surge Protection | 6KV | ||||
Reset Button | Support | ||||
Protection | Ingression protection: IP67 Vandal resistant: IK10 |
